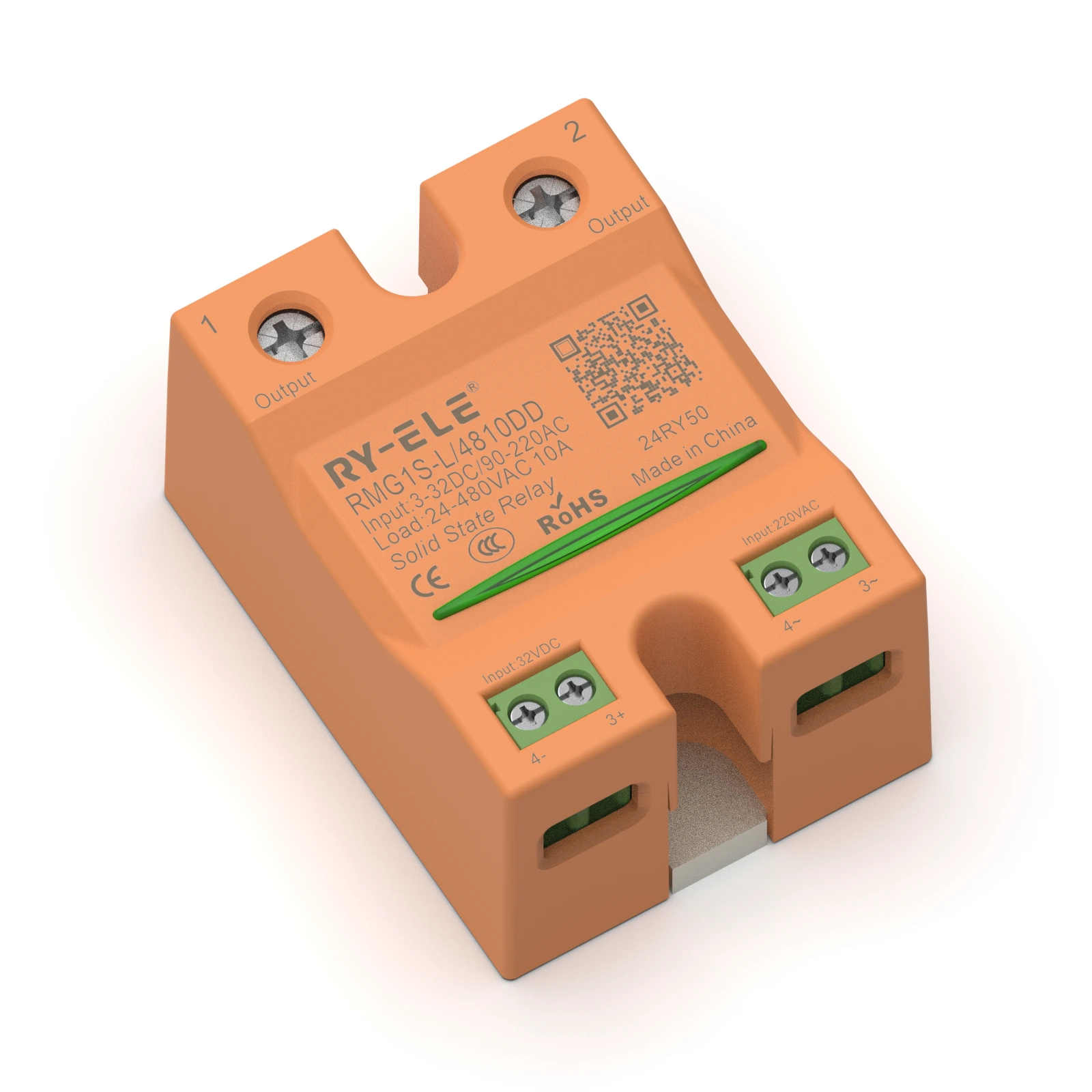

10A 24～480VAC Industrial Control RMG1S Single-phase DC Control DC Solid State Relay RY-ELE
Characteristics
●Appliance panel mount design, secured via M4 screws for SSR heat dissipation baseplate Mounted on a flat plate or radiator
●Industry-standard form factors and installation dimensions
●It is currently the most commonly used form factor and installation type in the solid state relay market
●It is widely used in injection molding machine heating system, packaging machinery, textile machinery, horses up to control, automation equipment control and other fields
Product Introduction
Input Control Voltage: 4–32VDC, compatible with PLCs and microcontrollers
Load Voltage Range: 24–480VAC, suitable for a wide range of industrial power applications
Load Current Options: 10A, 25A, 40A, 60A, 80A, 100A, 120A
Control Mode: Zero-cross trigger for reduced electrical noise
Mounting Style: Modular enclosure, screw mount at base
Electrical Isolation: Optical isolation (Opto-isolator) for enhanced interference resistance
