10A Self-Reset Screw-in Connection 22mm Flat Button Switch RY-ELE
XB2 Series
Characteristics
Screw-in Push Button Switch
● Diameter 22mm, modular assembly ,convenient and efficient;
● Diameter 22mm, modular assembly ,convenient and efficient;
● Plastic head(PA66), Aluminum oxide head(6063) optional;
● Rated voltage and current: UI:440VAC, ith:10A;
● IP65/dust proof/corrosion resistance/temperature resistance; High mechanical life, quality assurance;
● Momentary,Latching, contact type: 1NO, 1NC,1NO1NC, 2NO,2NC ;
● Voltage: AC/DC12-24V,220V, customized 6V,380V;
● IP65/dust proof/corrosion resistance/temperature resistance; High mechanical life, quality assurance;
● Momentary,Latching, contact type: 1NO, 1NC,1NO1NC, 2NO,2NC ;
● Voltage: AC/DC12-24V,220V, customized 6V,380V;
● Button color: Red, Green, Yellow, Blue, White, Black;
5.0
like
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Introduction

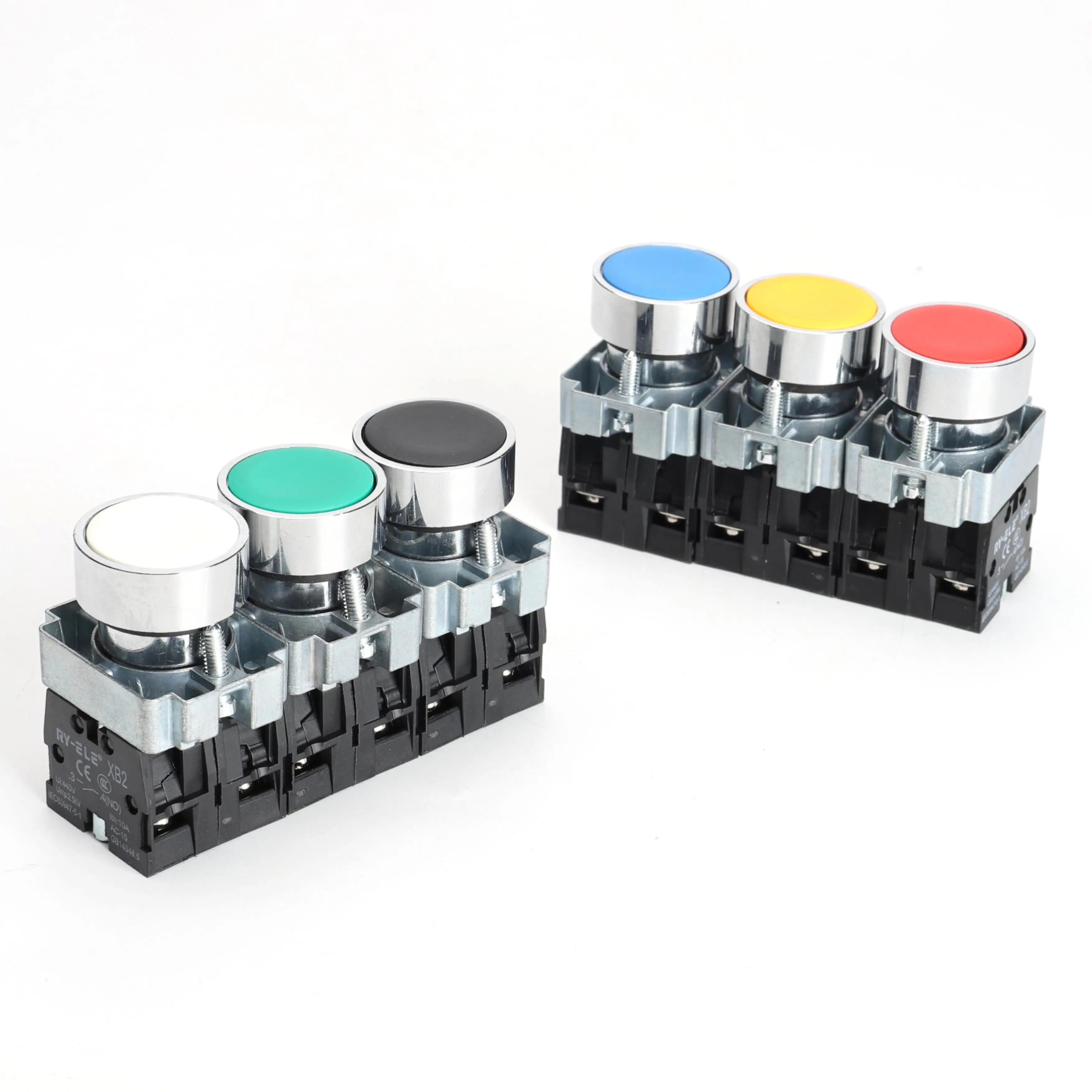

XB2 Screw-in Self-Reset Flat Button
Screw-in Push Button Switch
● Diameter 22mm, modular assembly ,convenient and efficient;
● Diameter 22mm, modular assembly ,convenient and efficient;
● Plastic head(PA66), Aluminum oxide head(6063) optional;
● Rated voltage and current: UI:440VAC, ith:10A;
● IP65/dust proof/corrosion resistance/temperature resistance;
● IP65/dust proof/corrosion resistance/temperature resistance;
High mechanical life, quality assurance;
● Momentary,Latching, contact type: 1NO, 1NC,1NO1NC, 2NO,2NC ;
● Voltage: AC/DC12-24V,220V, customized 6V,380V;
● Momentary,Latching, contact type: 1NO, 1NC,1NO1NC, 2NO,2NC ;
● Voltage: AC/DC12-24V,220V, customized 6V,380V;
● Button color: Red, Green, Yellow, Blue, White, Black;
Product Display
carousel-2
carousel-5
carousel-7
carousel-2
carousel-5
carousel-7
Product Advantages
High frequency and durability
Mechanical life reaches millions of times, reducing replacement frequency.
Flexible adaptation
Multiple contact combinations and color options to match different control requirements.
Cost-effectiveness
No self-locking structure simplifies the design and the price is more competitive.
electrial Specification
XB2 series flat button self-resetting push button switch has become an ideal choice for industrial automation and equipment control with its instant response, high reliability and ease of use.
◎ Rated voltage/current: 440VAC, 10A
◎ Mechanical life: ≥1000000 times;
◎ Electrical life:≥500000 times;
◎ Wiring method: Screw-in type;
FAQ
1
What is the maximum current rating for the XB2-11 Flat Button Switch?
The maximum current rating for the XB2-11 Flat Button Switch is 10A.
2
How many positions does the switch have?
The switch has 2 positions.
3
Does the switch come with an LED indicator?
No, the switch doesn't come with an LED indicator.
4
What type of contacts does the switch have?
The switch has silver contacts.
5
Is the switch normally closed or normally open?
The switch is normally closed.
6
How many poles does the switch have?
The switch has 2NO2NC configuration.
