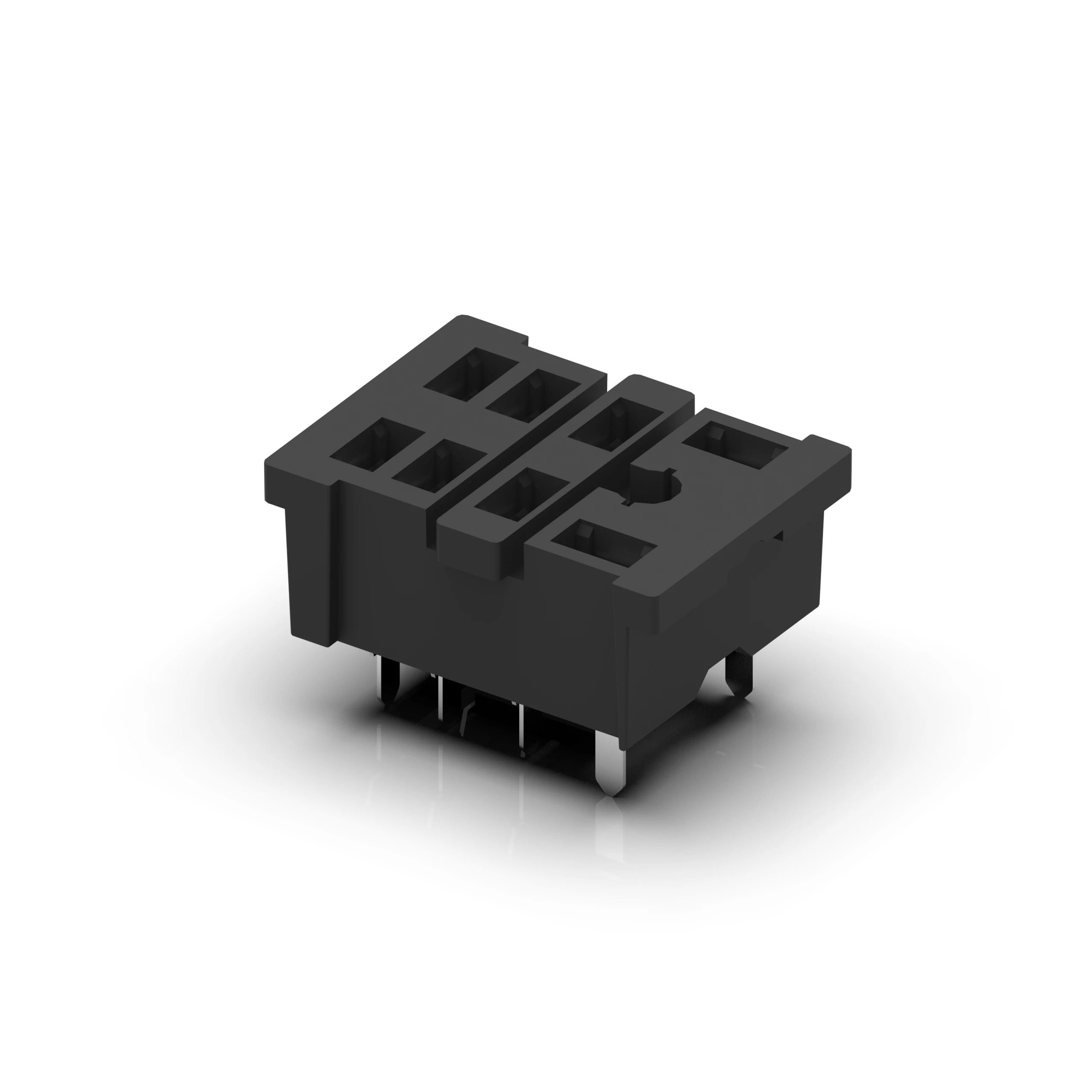

15A 250VAC 8Pin PCB board welding relay base 13F-2Z-A1 Manufacturer of the Industrial Control Products RY-ELE 1

15A 250VAC 8Pin PCB board welding relay base 13F-2Z-A1 Manufacturer of the Industrial Control Products RY-ELE 2

15A 250VAC 8Pin PCB board welding relay base 13F-2Z-A1 Manufacturer of the Industrial Control Products RY-ELE

Characteristics

Rated Current: Up to 15A at 250VAC, ideal for medium to high load control
Installation method: PCB board welding
Ambient Operating Temperature: -35°C to +70°C, suitable for harsh industrial environments
Withstand Voltage: Up to 2000VAC, ensuring electrical safety and reliability
Wire Entry Spacing: 7mm, optimized for ease of wiring
Weight: Approx. 7.2g, lightweight yet rugged in design

Place of Origin:

China

Payments:

T/T

Lead Time:

To be negotiated

shipping:

Express · Ocean freight · Land freight · Air freightreight

Customization:

Customized logo (Min. Order: 2000 sets)

Model Number:

18F-4Z-C5

Brand Name:

RY-ELE

Inquiry

Write a Review

Screw Thread

Temperature Range

-40°C - +70°C

Insulation Voltage

3500V/S

Screw torque

0.8N-1.2Nm

Load voltage

300VAC

Load Current

10A

Color

grey, black

Protect Feature

Sealed

Size

Subminiature

Use

General Purpose

Theory

Electromagnetic Relay

Contact Load

Low Power

Place of Origin

Zhejiang, China

Key Technical Features:

The 13F-2Z-A1 is an 8-pin PCB-mountable relay socket designed for compact control systems and relay interface boards. It supports 2 changeover (DPDT) contact relays and is ideal for use in embedded applications requiring plug-in relay functionality directly soldered onto PCBs.

Rated Current: Up to 15A at 250VAC, ideal for medium to high load control
Installation method: PCB board welding
Ambient Operating Temperature: -35°C to +70°C, suitable for harsh industrial environments
Withstand Voltage: Up to 2000VAC, ensuring electrical safety and reliability
Wire Entry Spacing: 7mm, optimized for ease of wiring
Weight: Approx. 7.2g, lightweight yet rugged in design

Product Display

carousel-2

carousel-5

Structural & Functional Advantages

15A 250VAC 8Pin PCB board welding relay base 13F-2Z-A1 Manufacturer of the Industrial Control Products RY-ELE 7

2Z Contact Configuration

Supports relays with 2 changeover contacts, allowing control of two independent circuits.

Plug-in Relay Support

Allows easy relay replacement without desoldering the socket, improving serviceability.

Compact PCB Solder Mounting

A1-style through-hole pins allow direct soldering onto PCB—ideal for embedded modules and signal control boards.

Cost-Effective Design

Optimized for mass production of relay interface PCBs in compact electrical systems.

Application Scenario

15A 250VAC 8Pin PCB board welding relay base 13F-2Z-A1 Manufacturer of the Industrial Control Products RY-ELE 11

Industrial Control Systems

PLCs, motor controls, and automation equipment

15A 250VAC 8Pin PCB board welding relay base 13F-2Z-A1 Manufacturer of the Industrial Control Products RY-ELE 12

Electrical Panels

Distribution boards and power supply units

Building Automation

Lighting control, HVAC systems, and security systems

Home Appliances

Wiring for household devices and equipment

FAQ

What type of relay does the 13F-2Z-A1 socket support?

The 13F-2Z-A1 supports 8-pin plug-in relays with 2 changeover contacts (DPDT / 2Z). It is compatible with common relay models such as RX2CN and RYER2N.

What does the “A1” in the model name mean?

“A1” indicates that the socket is a PCB-mount version—designed for direct soldering onto printed circuit boards, rather than screw or push-in terminals.

Is the relay replaceable after soldering?

Yes. The socket is soldered to the PCB, but the relay itself is plug-in type and can be replaced easily without affecting the wiring or soldered connections.

What is the pin configuration?

It follows a standard 8-pin dual-row layout, compatible with most industry-standard DPDT relays. A proper PCB footprint must be designed for the socket to fit correctly.

Does this socket include LED indication or surge protection?

No. The base 13F-2Z-A1 does not include built-in LED indicators or protection circuits. These features can be implemented on the PCB or included in the relay itself if required.
