RY-ELE - Your Leading industrial control relays Manufacturer.

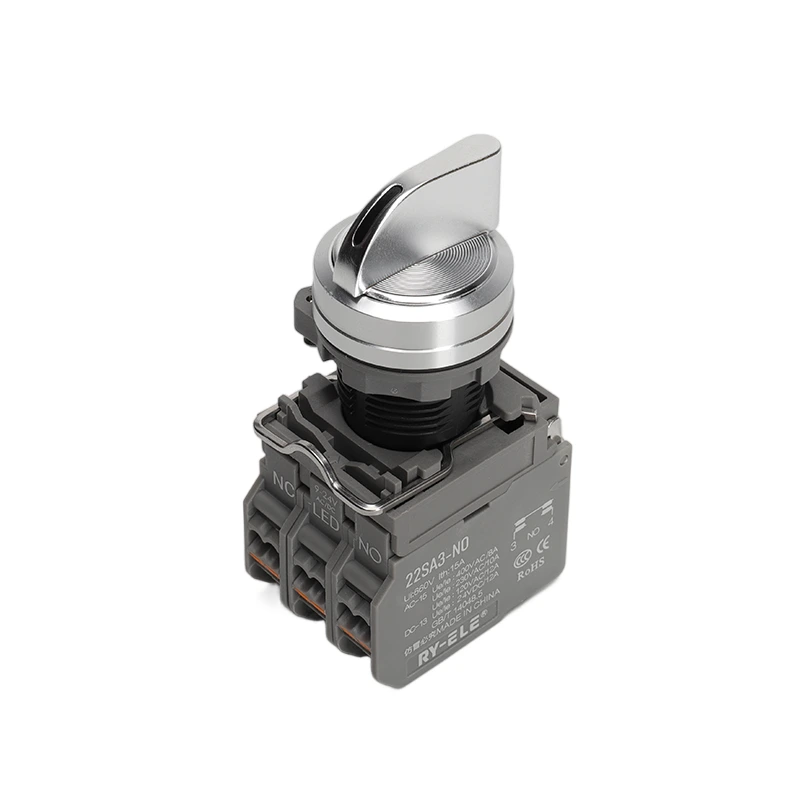

15A Plug in Connection SA3 Series Illuminated Rotary Selector Switch Manufacturer of the Industrial Control Products RY-ELE 1

15A Plug in Connection SA3 Series Illuminated Rotary Selector Switch Manufacturer of the Industrial Control Products RY-ELE 2

15A Plug in Connection SA3 Series Illuminated Rotary Selector Switch Manufacturer of the Industrial Control Products RY-ELE 3

15A Plug in Connection SA3 Series Illuminated Rotary Selector Switch Manufacturer of the Industrial Control Products RY-ELE

Characteristics

15A high current
High-end Plug in push button switch, indicator light
Multi-layer splicing, in and out parallel line, easy to disassemble and assemble
50000 long life LED, 10000000 times mechanical life
3500VAC power frequency withstand voltage

Brand:

RY-ELE

Place of Origin:

China

Payments:

T/T

Lead Time:

To be negotiated

shipping:

Express · Ocean freight · Land freight · Air freight

Customization:

Customized logo (Min. Order: 2000 sets)

Model Number:

RY22SA3X1-X/A

Inquiry

Write a Review

Key Technical Features:

The SA3 rotary selector switch from RY-ELE is a premium, modular selector designed for industrial control panels. It features a 22.2 mm mounting design, tool-free wiring, and a rugged modular construction. SA3 rotary switches are ideal for switching between operating modes such as Auto/Manual, Forward/Stop/Reverse, or Power On/Off.

15A high current
High-end Plug in push button switch, indicator light
Multi-layer splicing, in and out parallel line, easy to disassemble and assemble
50000 long life LED, 10000000 times mechanical life
3500VAC power frequency withstand voltage

Product Display

carousel-2

carousel-5

carousel-7

Dimensions

Structural & Functional Advantages

15A Plug in Connection SA3 Series Illuminated Rotary Selector Switch Manufacturer of the Industrial Control Products RY-ELE 12

Modular Selector Functionality

Supports both spring-return and locking rotary actions for flexible control logic.

Fast Push-In Wiring

Saves up to 60% installation time with tool-free terminals, suitable for fast-paced assembly lines.

Robust Panel Mounting

Firm and stable with anti-rotation tabs and locking ring; fits standard 22mm control panel holes.

Durable Head Material

Select from anodized aluminum or engineering-grade plastics to suit various environments.

Application Scenario

15A Plug in Connection SA3 Series Illuminated Rotary Selector Switch Manufacturer of the Industrial Control Products RY-ELE 16

Industrial Control Systems

PLCs, motor controls, and automation equipment

15A Plug in Connection SA3 Series Illuminated Rotary Selector Switch Manufacturer of the Industrial Control Products RY-ELE 17

Electrical Panels

Distribution boards and power supply units

Building Automation

Lighting control, HVAC systems, and security systems

Home Appliances

Wiring for household devices and equipment

FAQ

What’s the difference between spring-return and locking versions?

Spring-return automatically resets to center; Self-locking stays in the selected position until manually turned.

Can I choose 2-position or 3-position functions?

Yes. SA3 rotary switches are available in both 2-position (e.g., ON/OFF) and 3-position (e.g., FORWARD/STOP/REVERSE) versions.

What LED voltages are available?

Standard options: 9–24V, 220V. Custom options: 25–48V, 110V.

Can I install this on any 22mm panel hole?

Yes. The SA3 rotary fits standard Ø22.2 mm mounting holes and includes anti-rotation teeth for secure panel locking.

What colors are available for the LED?

Red, Green, Yellow, Blue, and White.
