41F Relay Accessory 20-position Plug-in Connection Strip 41F-H1 RY-ELE
Characteristics
20-position Plug-in Connection Strip
● 20-pin plug-in design – fast and tool-free installation;
● 20-pin plug-in design – fast and tool-free installation;
● Segmentable – easily cut to desired number of positions;
● Tight and stable electrical contact;
● Secure fit – designed to prevent accidental dislodgement;
● Secure fit – designed to prevent accidental dislodgement;

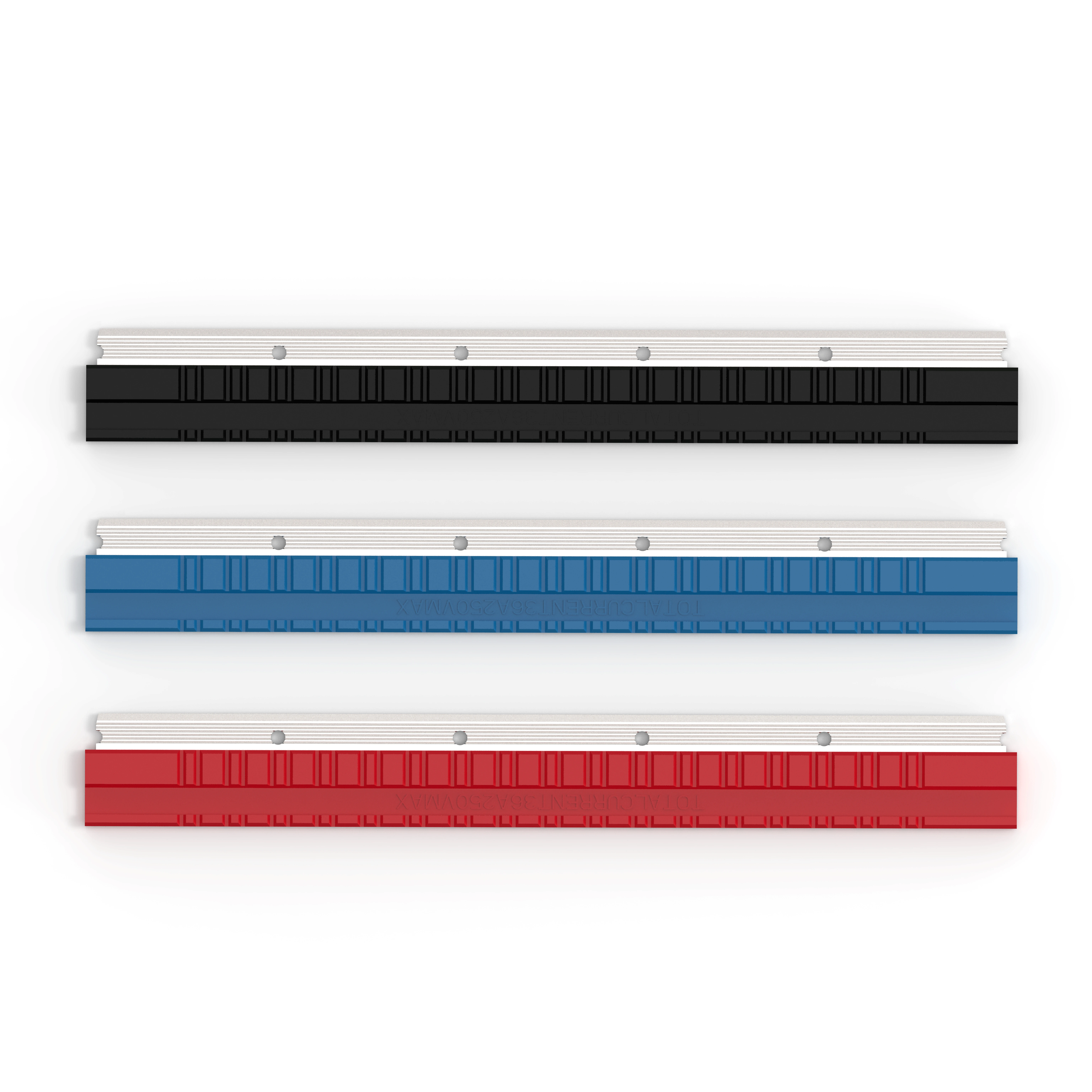

● Available in standard blue (other colors like black/red optional);
5.0
like
Brand:
RY-ELE
Place of Origin:
China
Payments:
T/T
Lead Time:
To be negotiated
shipping:
Express · Ocean freight · Land freight · Air freight
Customization:
Customized logo (Min. Order: 2000 sets)
Model Number:
41F-H1/H1B/H1R
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Introduction
The 41F-H1 is a 20-position plug-in connector strip, specifically designed to simplify wiring between adjacent RY-ELE 41F series direct-insert relay sockets. It offers efficient multi-channel common terminal linking, improving installation speed and reducing wiring complexity in control panels.
20-position Plug-in Connection Strip
● 20-pin plug-in design – fast and tool-free installation;
● 20-pin plug-in design – fast and tool-free installation;
● Segmentable – easily cut to desired number of positions;
● Tight and stable electrical contact;
● Secure fit – designed to prevent accidental dislodgement;
● Secure fit – designed to prevent accidental dislodgement;
● Available in standard blue (other colors like black/red optional);
Product Display
XB2-11D W220V
XB2-11D Y220V
主图2 (17)
Compatible Products
The 41F-H1 is designed to match the 41F series plug-in relay bases, such as:
-
41F-1Z-C4 (Single-pole relay base)
Other 41F series sockets with parallel terminals designed for plug-in busbar usage
Installation Guide
1、Identify the terminal rows to be connected across adjacent sockets.
2、Cut the 41F-H1 strip to the desired number of poles using standard cutters.
3、Insert the pins into the aligned socket terminal positions.
4、Press gently but firmly to ensure full insertion and contact.
5、Verify continuity if needed before powering up the system.
Application Scenario
Industrial control panels
-
Electrical distribution boxes
-
Machinery wiring systems
-
Signal relay and automation circuits
FAQ
1
What is the purpose of the 41F-H1 strip?
It provides a fast, tool-free way to connect multiple socket terminals together (e.g., sharing the same power line), saving wiring time and reducing clutter.
2
How many sockets can I connect with one 41F-H1?
The strip supports up to 20 terminals, but it can be cut to match the number of sockets or terminals needed.
3
Can I use this strip with other brands’ sockets?
It is designed for RY-ELE 41F series sockets. If other brands have matching terminal spacing and structure, compatibility is possible but not guaranteed.
4
Is the 41F-H1 strip insulated?
No, the exposed metal pins are not insulated, so care must be taken to prevent short circuits. Always install with power off.
