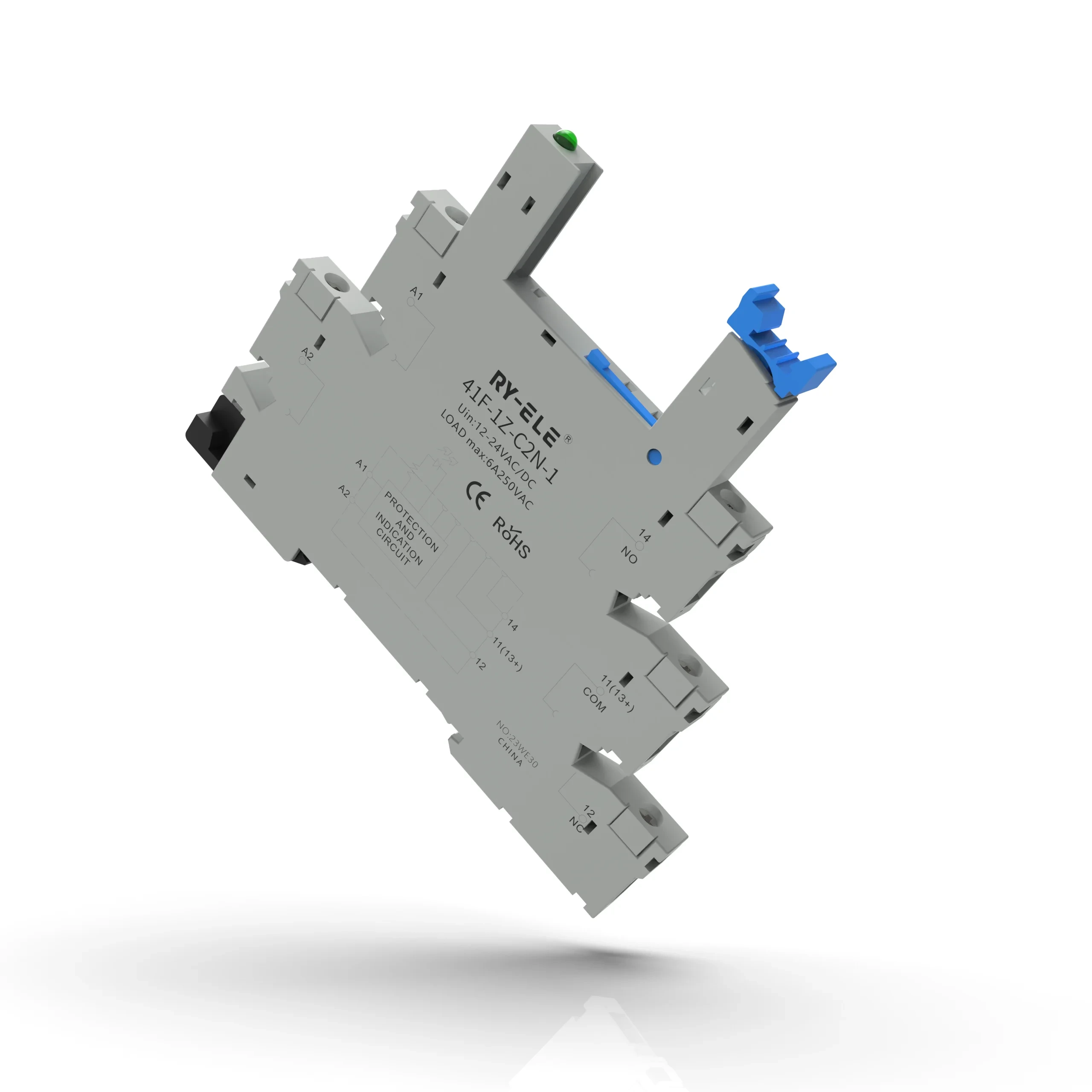

6A Ultra thin Relay Socket with 24VDC/AC Coil 41F-1Z-C2N-1 RY-ELE
Characteristics
●6A load switching capability
●A set of contact conversion forms
●Withstands 80A in rush current
●The space distance is greater than 8mm, and thecreepage distance is greater than 8mm
●The mechanical life is more than 10 million times
●Long life type is optionaleMeet the use of sockets
Ultra thin relay module
Industrial control Ultra-thin relay socket 41F-1Z-C2N-1 With a slim interface and 6A contact, this relay socket is designed for 24VDC/AC low relays, providing reliable and efficient performance for your industrial control needs. With customizable options for branding and color, this relay module offers flexibility to suit your specific requirements, backed by strict quality control measures for guaranteed reliability.
Product Display
Efficient, Customizable, Compact, Reliable
Versatile Customizable Slim Relay Socket
There 5 kinds of the input voltage in available:
(12-24)V AC/DC
(48-60)V AC/DC
(12-24)V AC/DC
(110-125)V AC/DC
(220-240)V AC/DC
(5)V AC/DC
The rated voltage 250VAC, with 6A rated current,
making it suitable for industrial control applications.
Application Scenario
Material Introduction
The relay socket adopts the Nylon PA66 materials.
PA66 nylon material is a common engineering plastic with excellent properties and a wide range of applications. It has good mechanical properties, heat resistance, chemical resistance, and wear resistance, and is widely used in fields such as automobiles, electronics, and machinery.
It has excellent mechanical properties, with the high tensile strength and elastic modulus, good toughness and rigidity, and can withstand large loads without deformation.
PA66 nylon material has good heat resistance. It has a high melting point and can maintain good performance at higher temperatures, making it less prone to softening and deformation.
In addition, PA66 nylon material also has good chemical resistance. It can resist the erosion of chemicals such as acid, alkali, and oil, and is less prone to corrosion and aging.
PA66 nylon material also has good wear resistance. Its surface is smooth, with low friction coefficient, which can reduce the wear of components and extend their service life.
