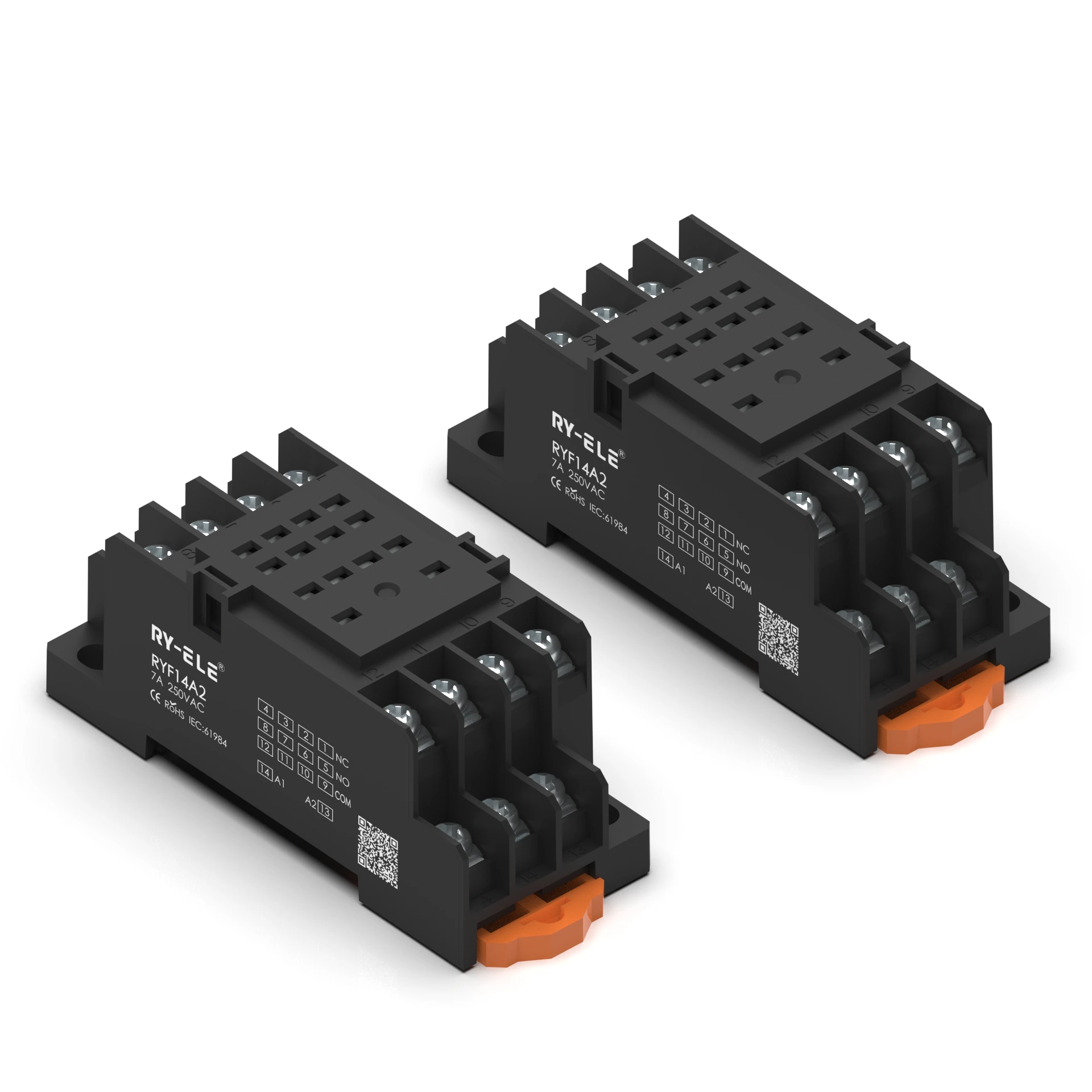

8A 250VAC 14Pin Screw-in relay base RYF14A2 Manufacturer of the Industrial Control Products RY-ELE

Characteristics

Rated Current: Up to 8A at 250VAC, ideal for medium to high load control
Installation method: Screw-in
Ambient Operating Temperature: -35°C to +70°C, suitable for harsh industrial environments
Withstand Voltage: Up to 2000VAC, ensuring electrical safety and reliability
Wire Entry Spacing: 7mm, optimized for ease of wiring
Weight: Approx. 48g, lightweight yet rugged in design

Place of Origin:

China

Payments:

T/T

Lead Time:

To be negotiated

shipping:

Express · Ocean freight · Land freight · Air freightreight

Customization:

Customized logo (Min. Order: 2000 sets)

Model Number:

RY14A2

Brand Name:

RY-ELE

Inquiry

Write a Review

Screw Thread

Temperature Range

-40°C - +70°C

Insulation Voltage

3500V/S

Screw torque

0.8N-1.2Nm

Load voltage

300VAC

Load Current

10A

Color

grey, black

Protect Feature

Sealed

Size

Subminiature

Use

General Purpose

Theory

Electromagnetic Relay

Contact Load

Low Power

Place of Origin

Zhejiang, China

Key Technical Features:

The RYF14A2 by RY-ELE is a high-quality 14-pin screw-type relay socket designed for use with industrial-grade multi-contact relays. It features a robust structure, finger-safe housing, and excellent compatibility with DIN rail mounting, making it ideal for demanding automation and control systems.

Rated Current: Up to 8A at 250VAC, ideal for medium to high load control
Installation method: Screw-in
Ambient Operating Temperature: -35°C to +70°C, suitable for harsh industrial environments
Withstand Voltage: Up to 2000VAC, ensuring electrical safety and reliability
Wire Entry Spacing: 7mm, optimized for ease of wiring
Weight: Approx. 48g, lightweight yet rugged in design

Product Display

ryf14a2-relay-socket-for-24vdc-and-220vac-relays

carousel-2

ryf14a2-relay-socket-for-electromechanical-relays

carousel-5

ryf14a2-industrial-relay-mounting-socket

RYF14A-E（灰）（2个）

ryf14a2-relay-socket-for-plc-and-panel-installation

RYF14A2（2个）

ryf14a2-relay-socket-for-control-cabinet

RYF14A2（4个）

RYF14A2（6个）

Structural & Functional Advantages

ryf14a-e-relay-socket-with-ejector-lever

8A 250VAC 14Pin Screw-in relay base RYF14A2 Manufacturer of the Industrial Control Products RY-ELE 13

Screw Terminal Connection

Ensures firm, vibration-resistant wiring

Reliable in Harsh Conditions

Operates stably in wide temperature ranges

Easy Integration

Compatible with standard DIN relay pins

Marker, Hook, and Connector Ready

Supports optional accessories for line identification and locking

Application Scenario

8A 250VAC 14Pin Screw-in relay base RYF14A2 Manufacturer of the Industrial Control Products RY-ELE 17

Industrial Control Systems

PLCs, motor controls, and automation equipment

8A 250VAC 14Pin Screw-in relay base RYF14A2 Manufacturer of the Industrial Control Products RY-ELE 18

Electrical Panels

Distribution boards and power supply units

Building Automation

Lighting control, HVAC systems, and security systems

Home Appliances

Wiring for household devices and equipment

FAQ

What type of relays are compatible with RYF14A2?

The RYF14A2 is compatible with 14-pin relays such as RXS4C, RYER4N, and other standard 3- or 4-pole relays.

What is the rated current and voltage?

The RYF14A2 supports up to 8A at 250VAC, suitable for high-load industrial applications.

Are accessories available?

Yes, optional accessories include: Marker plates for circuit identification;Hooks to prevent relay disengagement;Plug-in connectors for modular wiring setups.

What is the terminal torque and wire size?

The recommended screw torque is 0.8 N·m, supporting standard industrial wiring up to 7mm diameter.

Can I use it in high-vibration environments?

Absolutely. Its screw-lock terminals and compact design make it highly stable in vibration-prone settings.
