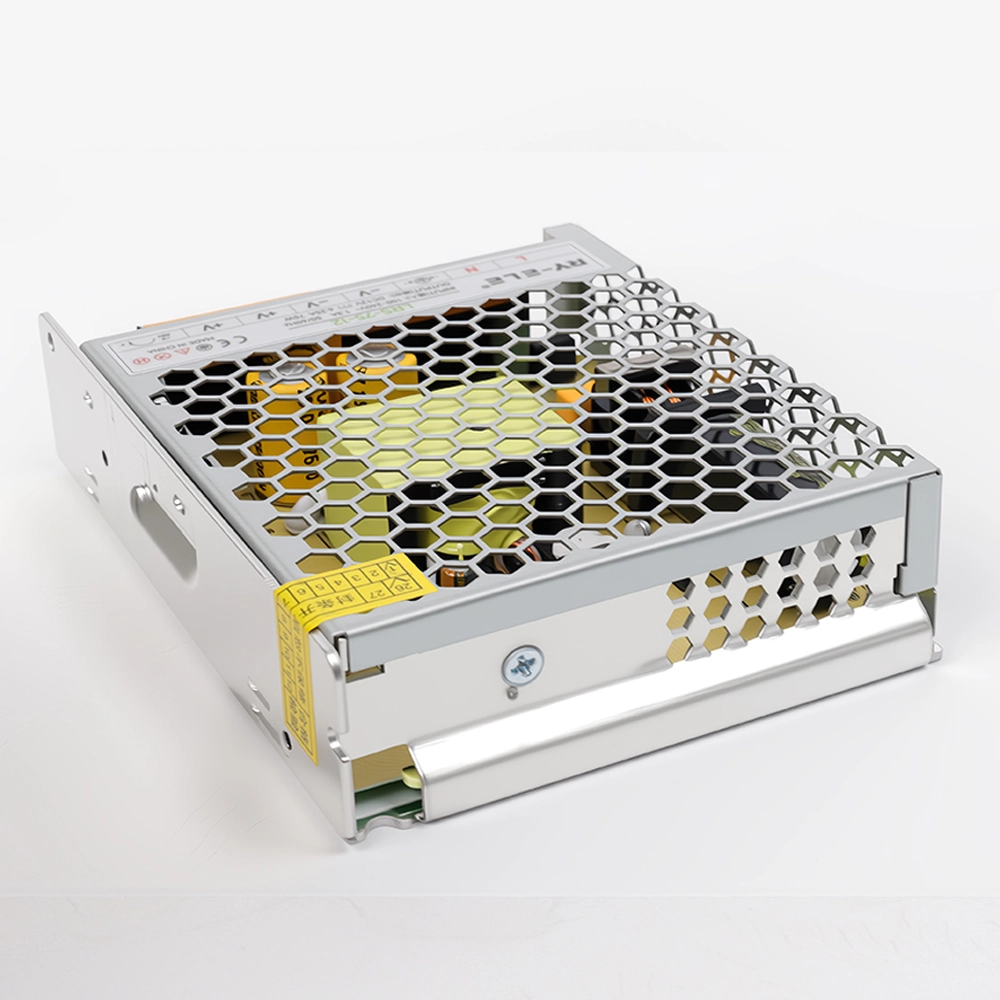

Din Rail Ultra-Slim Switching Power Supply For Power Distribution Cabinet LRS-75-12 RY-ELE
-
Rated Power: 75W
-
Output Voltage / Current: 12V DC / 6A
-
Input Voltage Range: 85–264VAC
-
Efficiency: Approx. 89%
-
Ripple & Noise: ≤120mVp-p
-
Line / Load Regulation: ±0.5%
-
Protections: Overload, overvoltage, short circuit
-
Operating Temperature: -10°C to +60°C
-
Dimensions: 99 × 97 × 30 mm
5.0
like
Package:
72pcs/CTN
price:
¥105.6
Brand:
RY-ELE
Place of Origin:
China
Payments:
T/T
Lead Time:
To be negotiated
shipping:
Express · Ocean freight · Land freight · Air freight
Customization:
Customized logo (Min. Order: 2000 sets)
Model Number:
LRS-75-12
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
voltage regulation range
10.2-13.8
rated power
75W
current rage
0-6.3A
current rating
6.3A
DC output voltage
12V
Output Current
1.5A/115VAC 0.85A/230VAC
Output Voltage
24VDC
Input Voltage
220V
Output Type
DUAL
MOQ
200PCS
Usage
power distribution cabinet
Weight
0.51kg
Size
32*125.2*102
Product name
Power Supply
Place of Origin
Zhejiang, China
75W Single Output | 12V DC | Universal AC Input | Industrial Grade
The LRS-75-12 is a compact, high-efficiency, single-output switching power supply designed for space-sensitive industrial, automation, and control applications. With a slim 30mm profile, 12V output, and 75W rated power, it provides reliable and safe DC power with built-in protections and global input compatibility.
Product Display
carousel-2
carousel-5
carousel-7
Product Highlights
Optimal balance between power output and compact size
High efficiency with low energy loss and temperature rise
Stable 12V output for instruments, valves, relay systems
Ultra-thin structure for dense cabinet installations
Application Scenario
Industrial automation and machinery
LED display and lighting systems
PLC and I/O control systems
Embedded systems and terminal equipment
FAQ
1
Can the output voltage be adjusted?
Yes, the output voltage can be adjusted within ±10%.
2
Is it suitable for continuous industrial operation?
Yes, it is designed for 24/7 industrial use.
3
Does it require an external cooling fan?
No, natural convection cooling is sufficient in normal environments.
4
Can it power multiple devices simultaneously?
Yes, as long as the total load does not exceed the rated power.
5
Is it compliant with industrial safety and EMC standards?
Yes, it complies with GB4943 safety standards and EN55032 EMC standards.
6
Is this model recommended for export control panels?
Yes, the wide AC input range makes it ideal for export-oriented control systems.
