Relay Accessory 10-position Plug-in Connection Strip LB-10-29H RY-ELE
Characteristics
● 10-position modular design – easily connects multiple relay or terminal contacts;
● Available in standard blue or black;
Product Introduction
● 10-position modular design – easily connects multiple relay or terminal contacts;
● Available in standard blue or black;

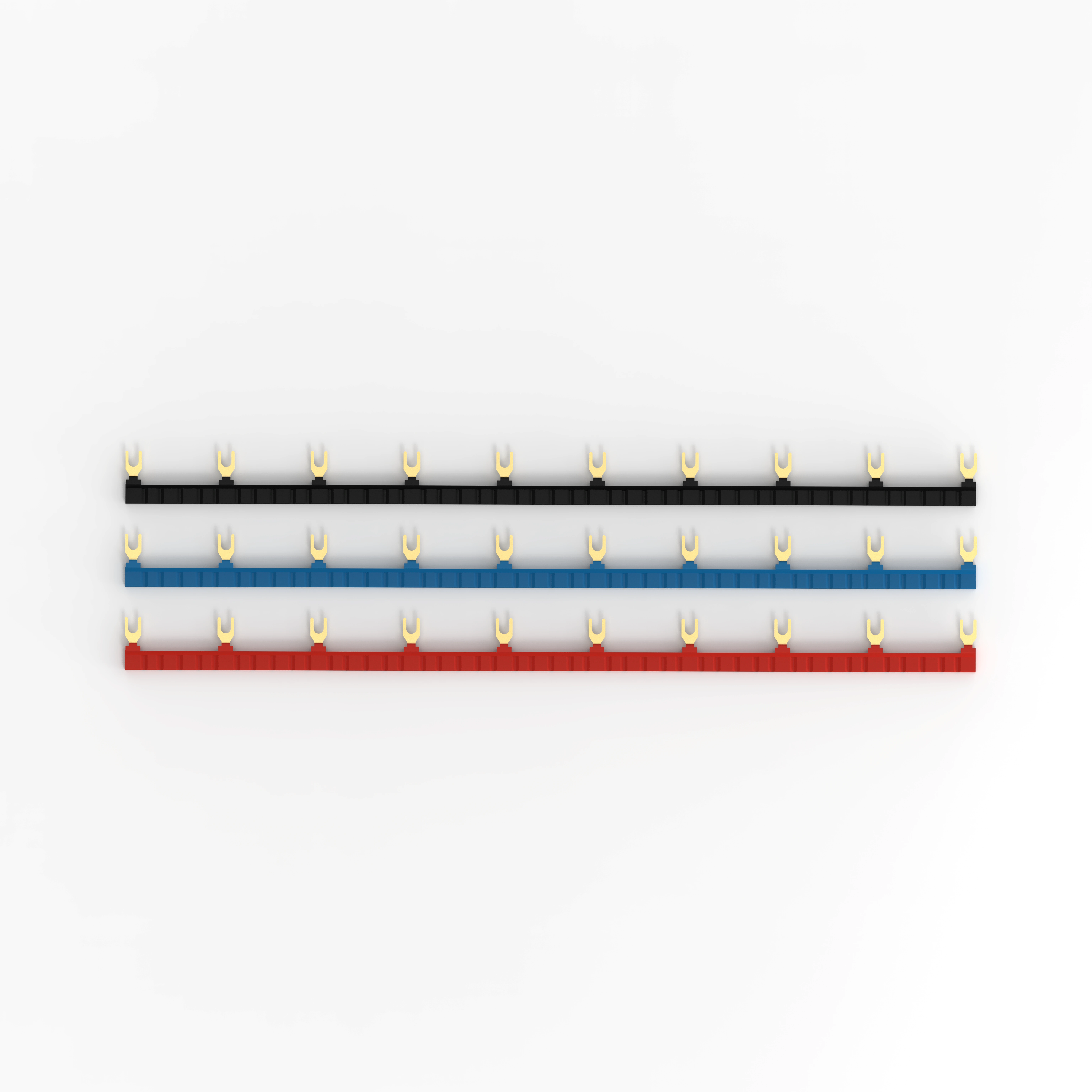

Product Display
Compatible Products
The LB-10-29H is suitable for use with the following RY-ELE relay sockets and bases:
18F Series And 13F Series Relay Bases;
Push-in or Screw-type Relay Bases with 2.9mm pin spacing
Terminal Blocks with standard 10-position marker or jumper slots
For best fit, verify that the relay base includes 29mm pitch spacing for plug-in strip compatibility.
Installation Guide
1、Align the LB-10-29H with the terminals or jumper slots of the relay base.
2、Push the connector strip into place until it clicks or fits snugly.
3、For fewer connections, cut the strip into smaller sections using pliers.
4、Ensure all contacts are properly seated to avoid arcing or signal loss.
Application Scenario
Industrial control panels
-
Electrical distribution boxes
-
Machinery wiring systems
-
Signal relay and automation circuits
