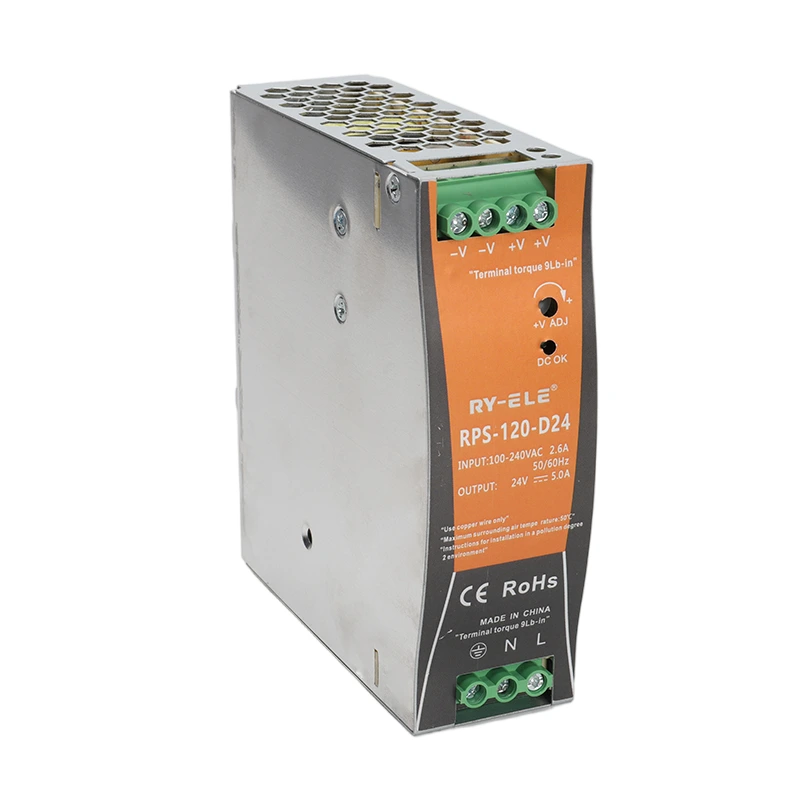

120W DIN-Rail Mount Power Supply For Power Distribution Cabinet RPS-120-24 RY-ELE
The RY-ELE RPS-120-24 is a 120W DIN-rail mount power supply that outputs a stable 24V DC at 5A. It is engineered for high-reliability automation systems, control cabinets, and industrial installations that demand robust, space-efficient power delivery.
5.0
like
Place of Origin:
China
Payments:
T/T
Lead Time:
To be negotiated
shipping:
Express · Ocean freight · Land freight · Air freight
Customization:
Customized logo (Min. Order: 2000 sets)
Model Number:
RPS-120-24
Brand Name:
RY-ELE
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
voltage regulation range
10.2-13.8
rated power
75W
current rage
0-6.3A
current rating
6.3A
DC output voltage
12V
Output Current
1.5A/115VAC 0.85A/230VAC
Output Voltage
24VDC
Input Voltage
220V
Output Type
DUAL
MOQ
200PCS
Usage
power distribution cabinet
Weight
0.51kg
Size
32*125.2*102
Product name
Power Supply
Place of Origin
Zhejiang, China
120W Single Output | 24V DC | Universal AC Input | Industrial Grade
The RY-ELE RPS-120-24 is a 120W DIN-rail mount power supply that outputs a stable 24V DC at 5A. It is engineered for high-reliability automation systems, control cabinets, and industrial installations that demand robust, space-efficient power delivery.
Product Display
carousel-2
carousel-5
carousel-7
RPS-120-D24-5
RPS-120-D24-7
RPS-120-D24-8
Product Highlights
Wide Input Range (85–264VAC / 120–370VDC)
Supports global voltage standards, ensuring seamless integration into worldwide industrial systems.
High Conversion Efficiency (up to 88%)
Reduces energy loss and heat, resulting in better thermal performance and lower energy costs.
Compact DIN-Rail Mounting Design
Slim 40mm width saves valuable panel space and simplifies installation in control cabinets.
Full-Load Burn-in Test & 100% Quality Assurance
Each unit undergoes rigorous testing to ensure performance consistency and reliability.
Application Scenario
Factory Automation & Control Panels
Building Automation
Telecom & Networking
Security & Surveillance
FAQ
1
What is the input voltage range of the RPS-120-24?
The RPS-120-24 supports a wide input range of 85–264VAC or 120–370VDC, making it suitable for global applications.
2
What is the output specification of this model?
It provides a 24V DC output at 5A, delivering a total power of 120W.
3
s the RPS-120-24 suitable for industrial environments?
Yes. It operates reliably in harsh environments with temperatures ranging from -10°C to +60°C and humidity from 20% to 90% RH.
4
What kind of protection features are built into the RPS-120-24?
The unit includes short-circuit, overload, and over voltage protection, all with automatic recovery after the fault is cleared.
5
Can I mount this power supply on a DIN rail?
Absolutely. The RPS-120-24 is designed for DIN-rail mounting, suitable for control cabinets and industrial panels.
6
Is the output voltage adjustable?
Yes. The output voltage can be fine-tuned within a ±10% adjustment range, using the onboard potentiometer.
