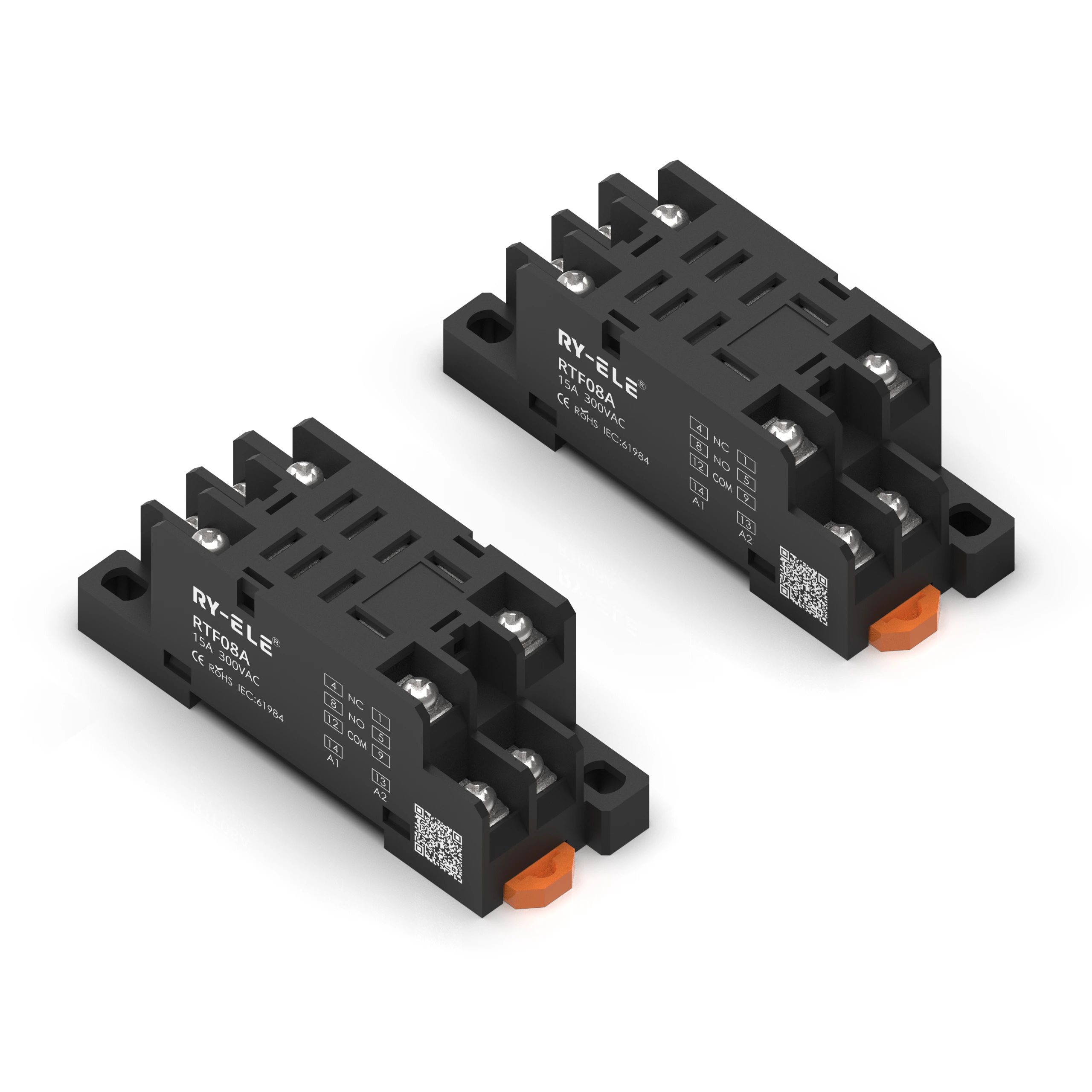

15A 250VAC 8Pin Screw-in relay base RTF08A Manufacturer of the Industrial Control Products RY-ELE 1

15A 250VAC 8Pin Screw-in relay base RTF08A Manufacturer of the Industrial Control Products RY-ELE 2

15A 250VAC 8Pin Screw-in relay base RTF08A Manufacturer of the Industrial Control Products RY-ELE 3

15A 250VAC 8Pin Screw-in relay base RTF08A Manufacturer of the Industrial Control Products RY-ELE 4

15A 250VAC 8Pin Screw-in relay base RTF08A Manufacturer of the Industrial Control Products RY-ELE

Characteristics

Rated Current: Up to 15A at 250VAC, ideal for medium to high load control
Installation method: Screw-in
Ambient Operating Temperature: -35°C to +70°C, suitable for harsh industrial environments
Withstand Voltage: Up to 2000VAC, ensuring electrical safety and reliability
Wire Entry Spacing: 7mm, optimized for ease of wiring
Weight: Approx. 45g, lightweight yet rugged in design

Inquiry

Write a Review

Key Technical Features:

The RTF08A is a classic 8-pin DIN rail relay socket with screw-type terminals, designed for 2-pole (DPDT) plug-in relays such as RYER2L, RX2CN. Known for its robustness and wide field compatibility, it is ideal for industrial automation, machine control, and PLC interfaces.

Rated Current: Up to 15A at 250VAC, ideal for medium to high load control
Installation method: Screw-in
Ambient Operating Temperature: -35°C to +70°C, suitable for harsh industrial environments
Withstand Voltage: Up to 2000VAC, ensuring electrical safety and reliability
Wire Entry Spacing: 7mm, optimized for ease of wiring
Weight: Approx. 45g, lightweight yet rugged in design

Product Display

carousel-2

carousel-5

Structural & Functional Advantages

15A 250VAC 8Pin Screw-in relay base RTF08A Manufacturer of the Industrial Control Products RY-ELE 9

Reliable Screw Terminals

Vibration-resistant connection for long-term reliability in harsh industrial conditions.

Dual Mounting Options

Supports 35mm DIN rail mounting and screw panel fixing, offering flexibility in control cabinet installation.

Universal Compatibility

Fits standard 8-pin DPDT plug-in relays from major brands, including RX2CN and RYER2L equivalents.

Accessory Support

Compatible with optional retaining clips, LED indicator modules, surge protectors, and marker strips.

Application Scenario

15A 250VAC 8Pin Screw-in relay base RTF08A Manufacturer of the Industrial Control Products RY-ELE 13

Industrial Control Systems

PLCs, motor controls, and automation equipment

15A 250VAC 8Pin Screw-in relay base RTF08A Manufacturer of the Industrial Control Products RY-ELE 14

Electrical Panels

Distribution boards and power supply units

Building Automation

Lighting control, HVAC systems, and security systems

Home Appliances

Wiring for household devices and equipment

FAQ

What type of relays is the RTF08A socket compatible with?

RTF08A is designed for 8-pin plug-in relays, particularly 2-pole changeover (DPDT) types such as RX2CN and RYER2L relays.

What does the “08” in the model name represent?

“08” indicates the socket supports 8-pin relays, commonly used for relays with two switching contacts (2Z / 2C).

Is it DIN rail mountable?

Yes. It can be snapped onto a standard 35mm DIN rail, or mounted with screws directly to a control panel.

Does the socket include any indicator or protection modules?

The base RTF08A model does not include built-in LED or surge protection, but optional modules and accessories (like indicator modules, hooks, marker strips) may be available depending on the relay system used.

What environments is it suitable for?

RTF08A is suitable for: Industrial automation panels;PLC relay outputs; Machine control cabinets;HVAC and building control systems;Power distribution logic circuits.
