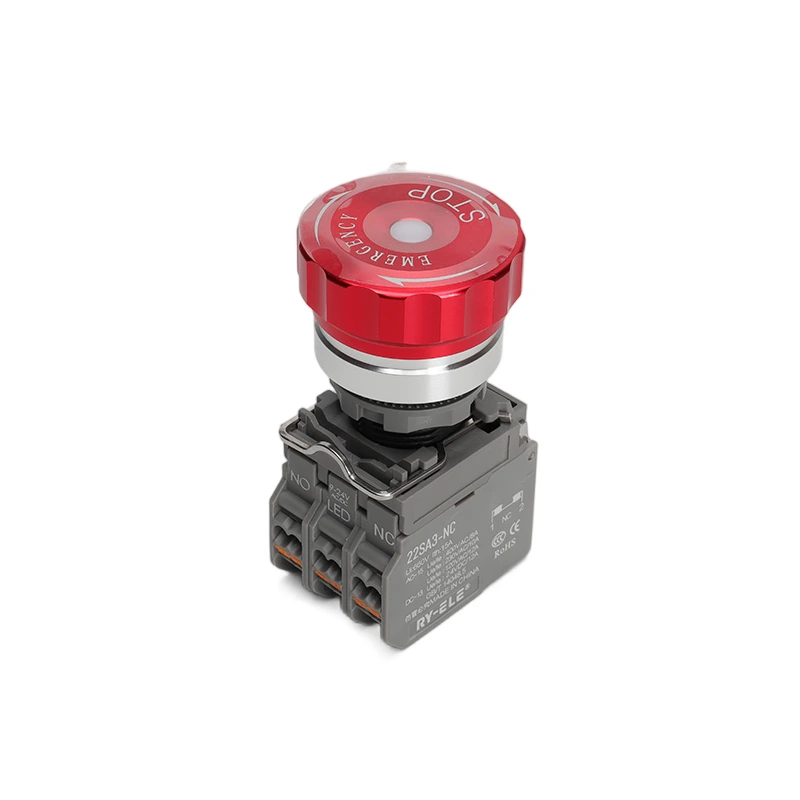

15A Illuminated Emergency Stop Button Switch with Aluminum Head
The 15A High Current Illuminated Emergency Stop Button Switch is designed for reliable emergency control in industrial equipment, automation systems, and electrical control panels. It combines high-current capacity, quick installation, and flexible connection in a compact design.
Key Features:
- 15A High Current Capacity – Supports high-current switching for demanding electrical applications.
- Illuminated Emergency Stop Button – Built-in indicator light provides clear visual status indication.
- Aluminum Head Design – Durable aluminum construction for reliable use in industrial environments.
- SA3 Push-in Quick Plug Series – Enables fast plug-in installation and simplifies wiring.
- Multi-Layer Splicing Design – Supports multiple switches and parallel line connections for flexible system configuration.
- Easy Assembly & Disassembly – Plug-in structure allows convenient installation, replacement, and maintenance.
- Wide Application – Suitable for industrial control panels, automation equipment, machinery, and other electrical control systems.
5.0
like
Package:
50pcs/ctn
price:
¥66.35
Brand:
RY-ELE
Place of Origin:
China
Payments:
100% T/T before shipment
Lead Time:
To be negotiated
shipping:
Express · Ocean freight · Land freight · Air freight
Customization:
Customized logo (Min. Order: 2000 sets)
Model Number:
RY22SA3M3-M11Z/R220V/A
Brand Name:
RY-ELE
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Diameter:
22MM
Max. Voltage:
250VAC
Waterproof/Protection:
IP65/IK10
Rated Voltage/Current:
AC250V/15A
Lamp color:
Red Green Yellow Blue White
Switch Combination:
1NO1NC/2NO2NC/3NO3NC
Operation type
Momentary or Latching
Max. Current:
15A
Type
Other
Place of Origin
Zhejiang, China
Product introduction
The RY-ELE SA3 M3 Emergency Stop Button Switch is designed for reliable emergency control in industrial equipment, automation systems, and electrical control panels. Featuring a premium anodized aluminum mushroom head, this emergency stop button switch combines durable construction with a clear and intuitive operation.
Available as an emergency stop button with light, the SA3 M3 can be equipped with integrated LED illumination for clear status indication. Its modular contact blocks and push-in, tool-free wiring design simplify installation, maintenance, and replacement.
Key Features
- 15A High Current Capacity – Supports reliable switching for demanding industrial control applications.
- Illuminated Design – Optional integrated LED makes the emergency stop button with light easy to identify and operate.
- Anodized Aluminum Mushroom Head – Provides enhanced durability and a premium appearance for industrial control panels.
- Modular Contact Blocks – Flexible configuration for different control and wiring requirements.
- Push-In Tool-Free Wiring – Enables quick and convenient installation without additional wiring tools.
- Multi-Layer Splicing Design – Supports parallel input and output connections while allowing easy assembly and disassembly.
- Long Service Life – LED life of up to 50,000 hours and mechanical life of up to 10 million operations.
- 3500VAC Withstand Voltage – Provides reliable electrical insulation performance for demanding applications.
The RY-ELE SA3 M3 Emergency Stop Button Switch is suitable for machinery, industrial automation, control panels, and other applications requiring dependable emergency switching and clear visual indication.
Product Display
carousel-2
carousel-5
carousel-7
Efficient High Current Switch
High-End Metal Construction
Anodized aluminum head resists corrosion, wear, and impact—ideal for demanding industrial or outdoor environments.
Push-In Wiring for Fast Setup
Tool-free terminal system reduces wiring time by up to 60%, ideal for mass installations and panel building.
Twist-to-Reset Mechanism
Prevents accidental restart—reset only by intentional rotation, enhancing safety.
Modular & Replaceable Components
Contact blocks and LED modules can be changed or expanded without rewiring.
Application Scenario
Machine Start/Stop Control
Equipment Panel Switch
Power Distribution Box
Automotive Control System
FAQ
1
What’s the difference between M1 and M3?
M1: Plastic mushroom head (PA66)
M3: Metal mushroom head made from 6063 anodized aluminum – more durable and premium-looking.
2
How is the emergency button reset?
The button is twist-to-reset – after pressing, it must be rotated clockwise to return to the normal state.
3
What LED options are available?
LED modules support 9–24VDC, 110V, 220V, or customized ranges. Available in Red, Green, Yellow, Blue, White.
4
Is the wiring method screw-type?
No. It uses push-in terminals, allowing for quick and tool-free installation.
5
Can this be used outdoors?
Yes. With IP65 waterproof rating, IK08 impact resistance, and -40℃ to +80℃ temperature tolerance, it’s suitable for outdoor or harsh environments.
