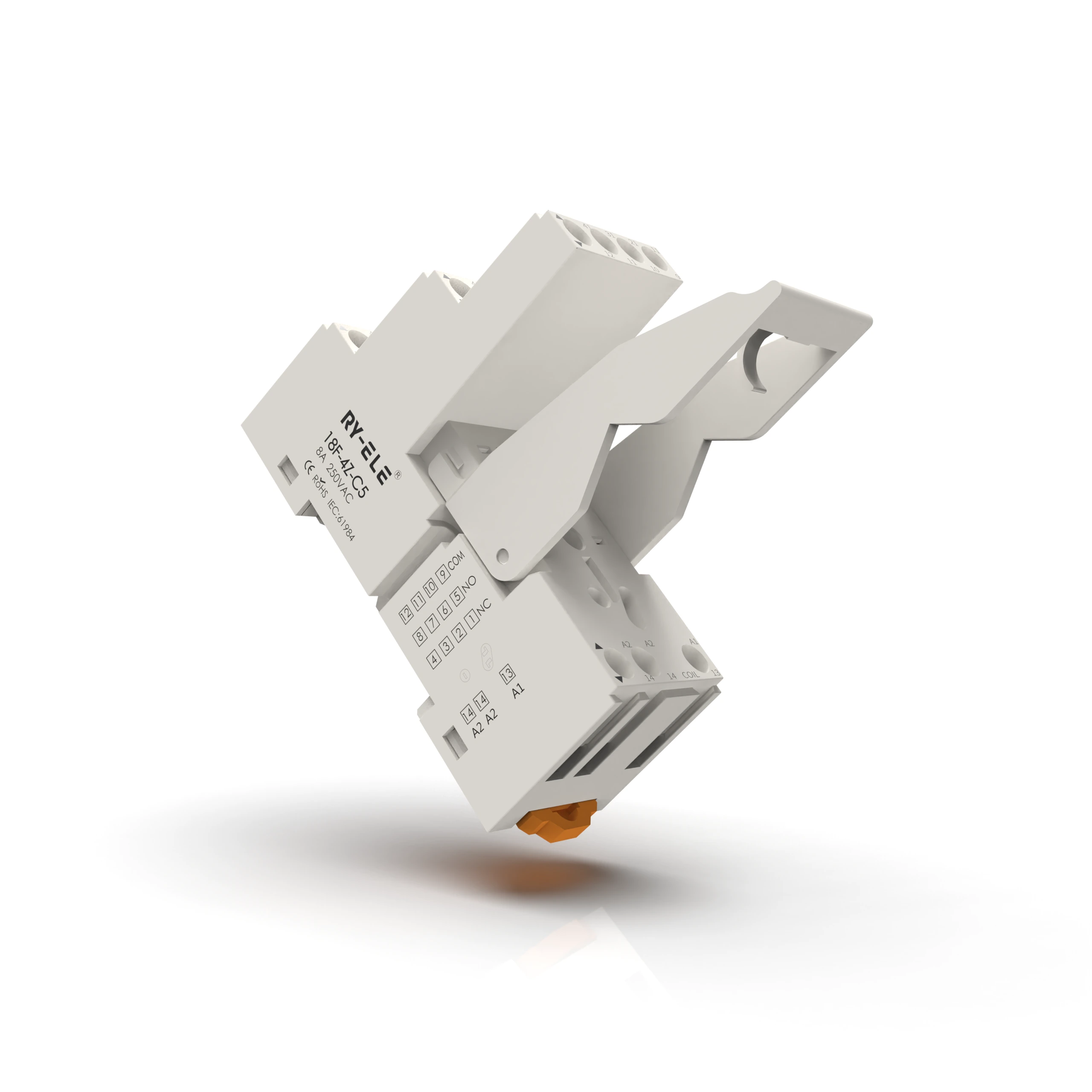

8A 250VAC 14Pin relay base 18F-4Z-C5 Manufacturer of the Industrial Control Products RY-ELE 1
8A 250VAC 14Pin relay base 18F-4Z-C5 Manufacturer of the Industrial Control Products RY-ELE 2
8A 250VAC 14Pin relay base 18F-4Z-C5 Manufacturer of the Industrial Control Products RY-ELE 3
8A 250VAC 14Pin relay base 18F-4Z-C5 Manufacturer of the Industrial Control Products RY-ELE 1
8A 250VAC 14Pin relay base 18F-4Z-C5 Manufacturer of the Industrial Control Products RY-ELE 2
8A 250VAC 14Pin relay base 18F-4Z-C5 Manufacturer of the Industrial Control Products RY-ELE 3

8A 250VAC 14Pin relay base 18F-4Z-C5 Manufacturer of the Industrial Control Products RY-ELE





Characteristics

  • Rated Current: Up to 8A at 250VAC, ideal for medium to high load control

  • Ambient Operating Temperature: -35°C to +70°C, suitable for harsh industrial environments

  • Withstand Voltage: Up to 2000VAC, ensuring electrical safety and reliability

  • Wire Entry Spacing: 7mm, optimized for ease of wiring

  • Screw Torque: 0.6N·m, providing secure and firm terminal connections

  • Weight: Approx. 68g, lightweight yet rugged in design

Inquiry

    oops...!

    no product data.

    Go to homepage
    Write a Review
    Screw Thread
    M3
    Temperature Range
    -40°C - +70°C
    Insulation Voltage
    3500V/S
    Screw torque
    0.8N-1.2Nm
    Load voltage
    300VAC
    Load Current
    10A
    Color
    grey, black
    Protect Feature
    Sealed
    Size
    Subminiature
    Use
    General Purpose
    Theory
    Electromagnetic Relay
    Contact Load
    Low Power
    Place of Origin
    Zhejiang, China

    Key Technical Features:

    The 18F-4Z-C5 is a screw-type DIN-rail mountable relay base designed for 4-pole plug-in relays such as RXS4C, offering secure wiring, high thermal resistance, and easy module replacement. It is ideal for high-density relay installations in industrial control systems.


    • Rated Current: Up to 8A at 250VAC, ideal for medium to high load control

    • Ambient Operating Temperature: -35°C to +70°C, suitable for harsh industrial environments

    • Withstand Voltage: Up to 2000VAC, ensuring electrical safety and reliability

    • Wire Entry Spacing: 7mm, optimized for ease of wiring

    • Screw Torque: 0.6N·m, providing secure and firm terminal connections

    • Weight: Approx. 68g, lightweight yet rugged in design




    18F-4Z-C5(有导轨）黑

    Product Display

    carousel-2
    carousel-2
    Read More
    carousel-5
    carousel-5
    Read More
    carousel-7
    carousel-7
    Read More

    Structural & Functional Advantages

    18F-4Z-C5(有导轨）白
    8A 250VAC 14Pin relay base 18F-4Z-C5 Manufacturer of the Industrial Control Products RY-ELE 9
    4-Pole Contact Support
    Perfect match for 4Z/4C/4PDT relays, supporting complex control circuits with one base.
    未标题-2 (16)
    DIN Rail & Panel Mounting
    Snap-on design compatible with 35mm DIN rail, plus holes for screw panel installation.
    未标题-3 (10)
    Relay Replacement Made Easy
    Supports plug-in relays, enabling fast maintenance without rewiring.
    未标题-4 (5)
    Excellent Compatibility
    Universally fits most 14-pin plug-in relays with 4C contact layout.

    Application Scenario

    8A 250VAC 14Pin relay base 18F-4Z-C5 Manufacturer of the Industrial Control Products RY-ELE 13
    Industrial Control Systems
    PLCs, motor controls, and automation equipment
    8A 250VAC 14Pin relay base 18F-4Z-C5 Manufacturer of the Industrial Control Products RY-ELE 14
    Electrical Panels
    Distribution boards and power supply units
    carousel-5
    Building Automation
    Lighting control, HVAC systems, and security systems
    carousel-7
    Home Appliances
    Wiring for household devices and equipment

    FAQ

    1
    What type of relays is the 18F-4Z-C5 compatible with?
    The 18F-4Z-C5 is designed to fit 4-pole plug-in relays, such as the RXS4C or RYER4N, which feature 4 changeover (DPDT) contacts. It uses a 14-pin layout suitable for industrial relays with 4Z configuration.
    2
    Is the socket DIN rail mountable?
    Yes. The 18F-4Z-C5 supports standard 35mm DIN rail mounting, and also has mounting holes for screw-fastening to panels.
    3
    What is the maximum current rating?
    The socket typically supports relays rated up to 8A at 250VAC or 30VDC, depending on the installed relay. Always confirm the relay rating for final circuit design.
    4
    What accessories can be used with this socket?
    The 18F-4Z-C5 is compatible with optional accessories such as:Hook locks for relay retention;LED indicator or surge suppression modules;Marking strips or terminal number tags. These improve safety, maintenance visibility, and wiring clarity.
    5
    Can the relay be replaced without rewiring?
    Yes. The socket supports plug-in relays, allowing easy removal and replacement without disturbing the wired terminals.
